COMPLETE UV WATER TREATMENT EQUIPMENT
UV water sterilizers from point-of-use to industrial flow.
Complete systems with UV chamber, germicidal lamp, quartz sleeve and matched ballast. Select stainless steel or PVC construction around flow, water quality and installation conditions.
SYSTEM RANGE
Start with flow and installation environment.
Three equipment families cover household, commercial and industrial water-treatment projects. Exact sizing is confirmed after reviewing water quality, UV transmittance and the required dose.
01
Compact stainless-steel systems
Simple complete units for point-of-use and light commercial treatment.
02
PVC multi-lamp systems
Corrosion-resistant equipment for pools, aquaculture and process water.
03
Industrial stainless-steel reactors
Flanged multi-lamp chambers for continuous high-flow treatment.
304 / 316 STAINLESS STEEL
Compact UV water sterilizers
Ready-to-install systems for drinking-water equipment, homes, small commercial systems and low-flow circulation loops. The polished chamber is supplied with a matched UV lamp, quartz sleeve and electronic ballast.
- Complete plug-in system
- Threaded inlet and outlet
- Wall-mount chamber brackets
- Replacement lamp and sleeve support
| Model | Flow m³/h | Flow GPM | UV power | Inlet / outlet | Dimensions L×D×H |
|---|---|---|---|---|---|
| BOSUV-A01 | 0.23 | 1 | 8 W | G1/4" | 220×50.8×70.8 mm |
| BOSUV-A02 | 0.45 | 2 | 14 W | G1/2" | 350×63.5×88.5 mm |
| BOSUV-A03 | 0.68 | 3 | 17 W | G1/2" | 360×63.5×88.5 mm |
| BOSUV-A06 | 1.35 | 6 | 21 W | G3/4" | 490×63.5×88.5 mm |
| BOSUV-A08 | 1.80 | 8 | 28 W | G3/4" | 600×63.5×88.5 mm |
| BOSUV-A12 | 2.70 | 12 | 40 W | G3/4" | 906×63.5×88.5 mm |
CORROSION-RESISTANT CONSTRUCTION

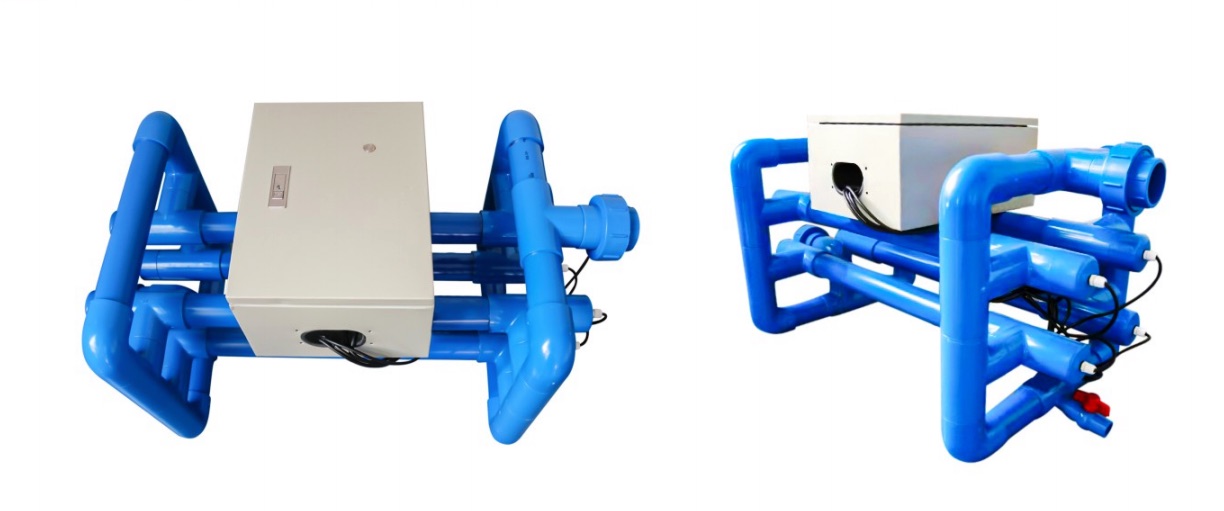

PVC UV sterilizer systems
Multi-lamp PVC systems provide a broad flow range for swimming pools, aquaculture, seawater-adjacent installations and process-water projects where metal corrosion is a concern.
- Single or multi-lamp layouts
- 0.5–100 m³/h catalogue range
- 1/2" to 4" water connections
- Control enclosure integrated with the frame
| Model | Flow m³/h | UV power | Lamp quantity | Inlet / outlet |
|---|---|---|---|---|
| PUVC-1T15/T8 | 1 | 15 W | 1 | 1/2" |
| PUVC-2T30/T8 | 2 | 30 W | 1 | 3/4" |
| PUVC-3T30/T8 | 3 | 60 W | 2 | 1" |
| PUVC-6T30/T8 | 6 | 120 W | 4 | 1-1/2" |
| PUVC-12T30/T8 | 12 | 240 W | 8 | 2" |
| PUVC-20T36HO/T5 | 20 | 320 W | 4 | 2-1/2" |
| PUVC-30T36HO/T5 | 30 | 640 W | 8 | 2-1/2" |
| PUVC-60T64HO/T5 | 60 | 1,200 W | 8 | 3" |
| PUVC-100T64HO/T5 | 100 | 1,500 W | 10 | 4" |
The catalogue includes additional T5 and T8 configurations between these reference points. Final lamp quantity and power are matched to the required treatment dose.
HIGH-FLOW INDUSTRIAL TREATMENT

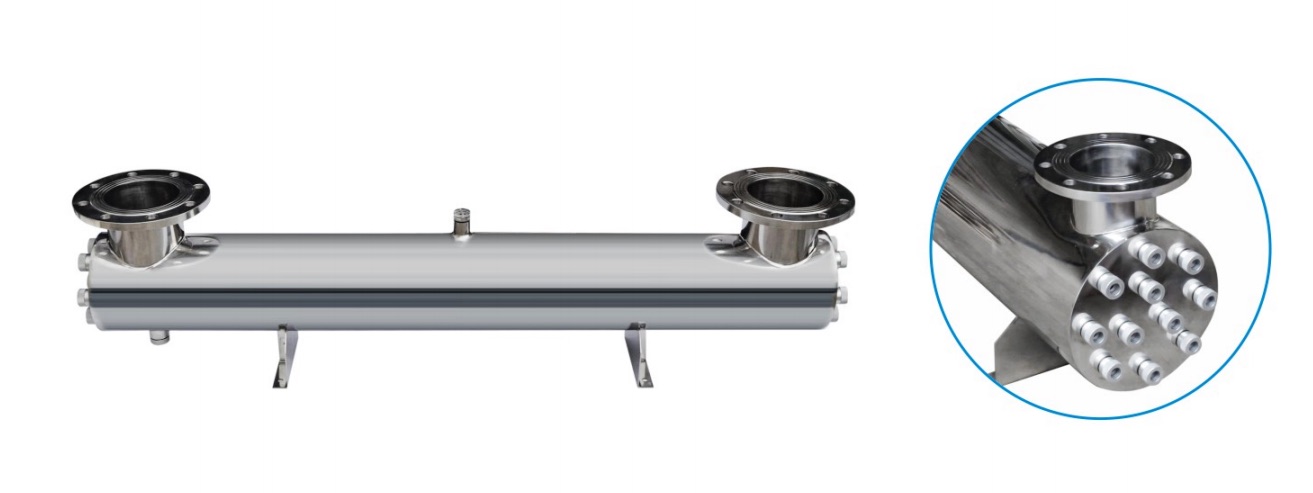

Industrial stainless-steel UV reactors
Flanged 304/316 chambers for continuous treatment in water plants, food processing, pharmaceutical production, aquaculture and industrial water systems.
- Multi-lamp chamber construction
- DN40–DN150 flange options
- 5.5–150 m³/h catalogue range
- Optional monitoring and control integration
| Model | Flow m³/h | Flow GPM | UV power | Inlet / outlet | Dimensions L×D×H |
|---|---|---|---|---|---|
| BOSUV-B5.5T40 | 5.5 | 24 | 2×40 W | G1" | 906×101×201 mm |
| BOSUV-B12T40 | 12 | 53 | 4×40 W | DN50 | 906×159×359 mm |
| BOSUV-B20T80 | 20 | 88 | 3×80 W | DN65 | 906×159×359 mm |
| BOSUV-B45T120 | 45 | 198 | 5×120 W | DN80 | 1220×159×359 mm |
| BOSUV-B60T150 | 60 | 260 | 5×150 W | DN100 | 1630×219×419 mm |
| BOSUV-B100T150 | 100 | 440 | 7×150 W | DN100 | 1630×219×473 mm |
| BOSUV-B125T150 | 125 | 550 | 9×150 W | DN150 | 1630×273×473 mm |
| BOSUV-B150T150 | 150 | 660 | 11×150 W | DN150 | 1630×325×525 mm |
APPLICATIONS
One product family, different treatment conditions.
System selection depends on more than flow. BIOSUN reviews the water source, UV transmittance, target microorganism, required dose and operating pressure before confirming a model.
SYSTEM MATCHING
Send five details for an accurate recommendation.
- 01Required flowm³/h or GPM
- 02Water sourceDrinking, pool, process or wastewater
- 03ConnectionThread or flange size
- 04Power supplyVoltage and frequency
- 05Target standardRequired dose or treatment objective
