Quartz Sleeve Selection Guide for UV Water Sterilizers

Quartz sleeves are small parts compared with the UV lamp and reactor, but they have a direct effect on sterilization performance, maintenance cost and replacement fit. For purchasing teams and maintenance companies, choosing a quartz sleeve only by outer diameter or approximate length can lead to sealing problems, lower UV transmission or installation delays.

This guide is written for overseas B2B buyers who source quartz sleeves for UV water sterilizers, industrial water treatment systems, OEM equipment and replacement maintenance projects.

Quick Answer: What Information Is Needed for Quartz Sleeve Matching?

For a fast quotation, prepare the quartz sleeve total length, outside diameter, inside diameter if available, wall thickness, open-end or closed-end structure, sealing position, O-ring size, lamp model and clear photos of both ends. If the sleeve is used with a specific UV reactor, include the equipment model and installation photos.

1. Start With the UV Water Sterilizer Structure

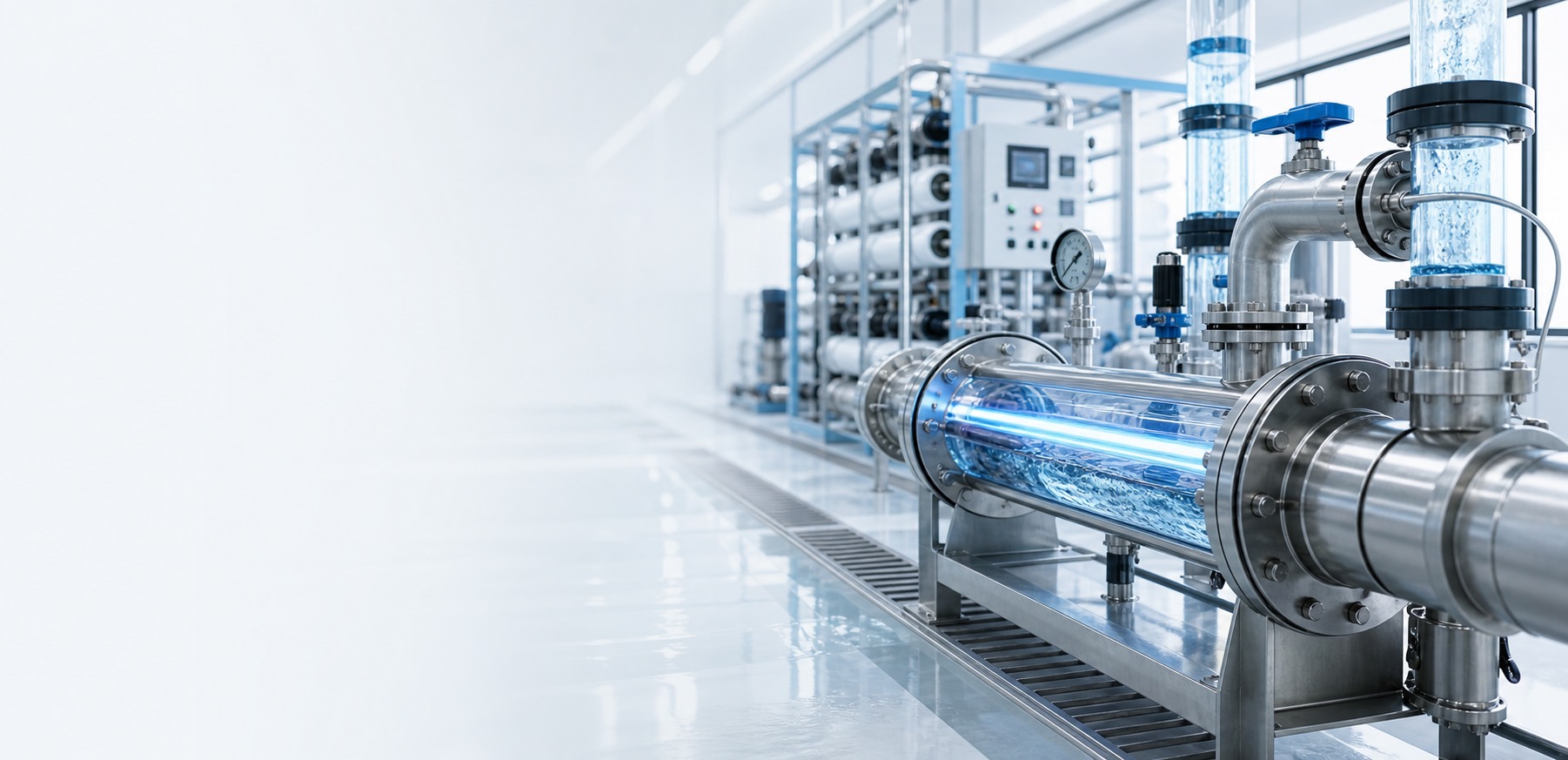

Most water treatment systems place the UV lamp inside a quartz sleeve. The sleeve protects the lamp from water while allowing UV-C energy to pass through. The reactor design decides the correct sleeve length, diameter, sealing position and installation method.

If you are replacing parts in an existing system, review the old sleeve and the installed UV germicidal lamp tube together. If you are developing new equipment, confirm the sleeve, lamp, reactor and UV electronic ballast as one system instead of choosing each component separately.

2. Choose Quartz With Good UV Transmission

The purpose of the sleeve is not only mechanical protection. The quartz must allow enough UV-C output to reach the water. Poor material quality, surface contamination or aging can reduce transmission and weaken system performance even when the lamp still lights up.

For purchasing, ask whether the sleeve is made for UV germicidal applications, not only general transparent tubing. BIOSUN supplies quartz sleeves for UV water sterilizers and can help buyers compare sleeve dimensions with lamp and reactor requirements.

3. Confirm Length, Diameter and Wall Thickness

Quartz sleeve dimensions must be checked carefully. Total length affects whether the sleeve can be fixed inside the reactor. Outside diameter affects the fit with the chamber and sealing parts. Wall thickness affects strength, heat tolerance and available space around the lamp.

When measuring an old sleeve, use a caliper when possible and take photos next to a ruler. For distributors and maintenance companies, keeping a record of sleeve dimensions by customer equipment model can reduce repeat matching time.

4. Check Open-End, Closed-End and Sealing Details

Some quartz sleeves are open at both ends, while others are closed at one end. Many water sterilizer systems also use O-rings, nuts, caps or compression fittings. If these sealing details are wrong, the sleeve may leak or fail to install even when the length and diameter are close.

Buyers should send photos of the sleeve ends, sealing groove, cap area and old O-rings. If the system is used in commercial or industrial water treatment, it is often useful to order UV lamp accessories such as O-rings, lamp holders and caps together with the replacement sleeve.

5. Match the Sleeve With the Lamp and Ballast Maintenance Plan

A quartz sleeve replacement is a good time to review the whole UV system. If the lamp has reached its rated service life, replacing only the sleeve may not restore the expected UV output. If the ballast is unstable, new lamps may start poorly or fail early.

For maintenance projects, buyers can prepare a combined list covering replacement UVC lamps, quartz sleeves, O-rings and ballasts. This reduces downtime and avoids separate shipments for small parts.

6. Maintenance Signs That a Quartz Sleeve Should Be Replaced

A sleeve should be cleaned or replaced when it becomes cloudy, cracked, scratched, heavily scaled or difficult to seal. In hard-water applications, mineral deposits can build up quickly and block UV transmission. Regular inspection helps buyers avoid running a UV system that looks normal but performs poorly.

For more complete replacement planning, review BIOSUN guidance on UVC lamp maintenance with quartz sleeves and ballasts. It explains why visible light alone is not a reliable indicator of sterilization performance.

7. Buyer Checklist Before Sending an Inquiry

• Quartz sleeve total length, outside diameter and wall thickness
• Open-end or closed-end structure
• Photos of both ends, sealing groove and O-rings
• UV lamp model, wattage and tube length
• Water sterilizer or reactor model
• Quantity, packing requirement and destination country
• Whether the order is for replacement maintenance, distributor stock or OEM production

Common Questions About Quartz Sleeves

Can I replace a quartz sleeve with a similar glass tube?

No. Standard glass is not suitable for germicidal UV-C transmission. UV water sterilizers need quartz sleeves designed for UV applications, with correct dimensions and sealing structure.

Should I replace the quartz sleeve every time I replace the lamp?

Not always. If the sleeve is clean, transparent, undamaged and seals correctly, it may continue to be used. If it is cloudy, cracked, scratched or heavily scaled, replacement should be considered.

What if the old sleeve has no model number?

Send measurements and photos. BIOSUN can compare the sleeve dimensions with the lamp and reactor structure to narrow down the replacement option.

Summary

Quartz sleeve selection should be based on UV transmission, material, length, diameter, wall thickness, end structure, sealing method and compatibility with the UV lamp and reactor. For B2B buyers, the fastest way to avoid mismatch is to send clear photos, accurate dimensions and the related lamp model together.

For quartz sleeve matching support, review the BIOSUN quartz sleeve product page or send your dimensions and photos through the BIOSUN inquiry page. The team can help confirm sleeve, lamp and accessory combinations for water sterilizer maintenance and OEM projects.
